Overview
Mobile Email Management
Emails are an integral part of every business. Although other modes of communication, such as instant messaging, text messaging and social media, have emerged and are fast gaining popularity, emails continue to be the primary means of official communication. According to an Email Statistics Report 2017-2021 by Radicati Group, the number of email users worldwide will exceed 4.1 billion by the end of 2021. In 2017, the number of business and consumer emails sent and received per day was expected to reach 269 billion.
The ability to view corporate emails on personal/corporate devices does offer convenience and improve productivity, but it also raises security and deployment concerns. Mobile Email Management (MEM) can help combat such challenges.
Today, businesses can no longer do without Mobile Email Management (MEM). MEM allows IT pros to control mobile devices accessing emails, prevent data loss, enforce strict compliance policies and encrypt sensitive corporate data. 42Gears Mobile Email Management(MEM) solution offers comprehensive features to safeguard corporate email infrastructures against threats.
Challenges of Mobile Emails
Mobile emails undoubtedly help the workforce become more productive. However, they also pose many challenges, such as securing email access across heterogeneous devices, OSs and email clients; protecting sensitive corporate data from malicious apps; preventing unauthorized, lost or stolen devices from accessing corporate emails; and restricting and securing email access over unsecured networks. Transferring corporate emails to personal accounts or other emails by employees can also pose a serious threat.
42Gears MEM - Key Features
- Containerization of corporate emails to keep personal apps separate and ensure data encryption
- Enforced SSL to protect emails from unsecured networks
- Email access on managed and compliant devices only
- Device lockdown and data wipe on stolen or lost devices
- Over-the -air email configuration
- Data loss prevention through various measures, such as disabling copy/paste, screenshots and printing of emails
- Certificate management for CBA (Certificate Based Authentication)
Mobile Email Deployment
42Gears UEM can deeply integrate with Mobile Email Infrastructure to effectively manage and control mobile devices accessing corporate emails. Compliance policies can be enforced and sensitive data can be encrypted on mobile devices that access emails. 42Gears UEM supports the following types of Mobile Email Infrastructures.
Microsoft Exchange Server 2010/2013/2016
Microsoft 365
42Gears offers MEM services for MS Exchange-based infrastructure using PowerShell integration. 42Gears UEM acts as a PowerShell admin in this model and issues commands to the Exchange ActiveSync (EAS) infrastructure based on policies defined in the 42Gears Console to allow or deny email access.
MEM Deployment Workflow - Using PowerShell Integration
1. MDM admin configures MS Exchange to block all mobile email clients by default.
2. The admin sets policies on SureMDM.
3. Mobile devices are blocked by MS Exchange server by default as per policies set by the admin.
4. Users enroll devices into SureMDM.
5. MDM pushes security and compliance policies to all the devices.
6. Device reports to be compliant.
7. SureMDM issues the PowerShell command to MS Exchange (relayed via 42Gears MEM Gateway) to grant email access to compliant devices.
8. Devices can start accessing emails.
MEM Infrastructure

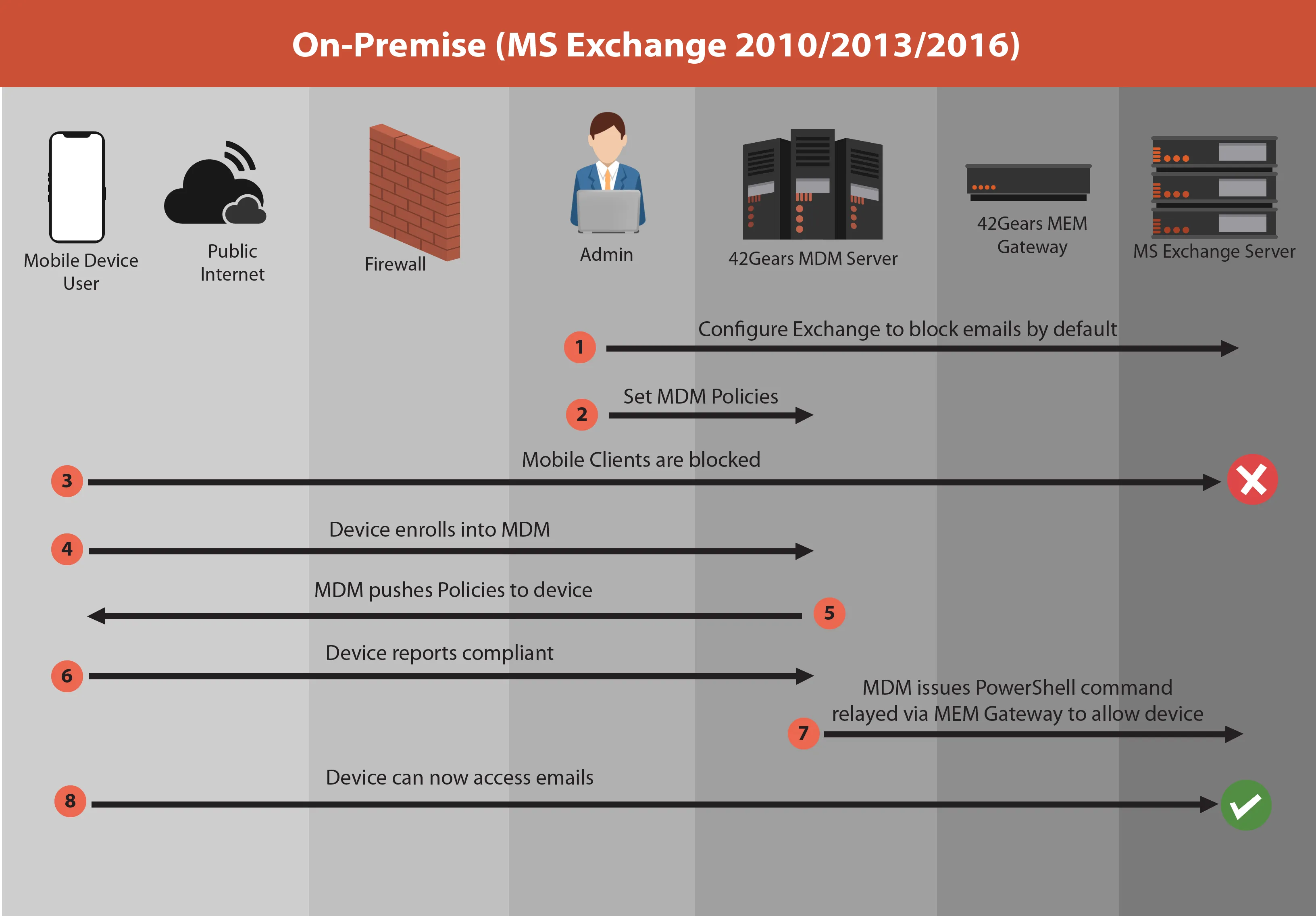

A. On-Premise

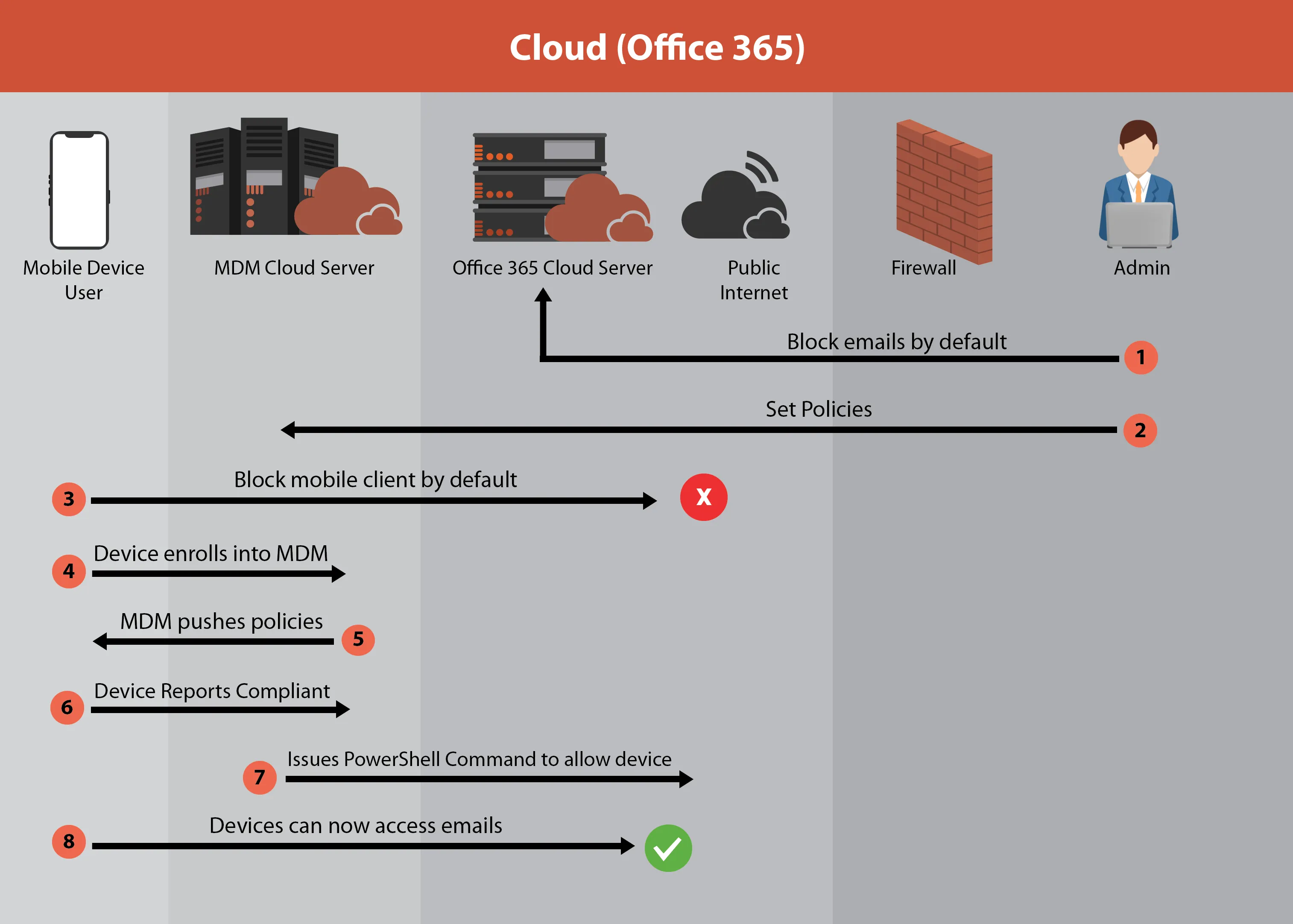

B. Cloud

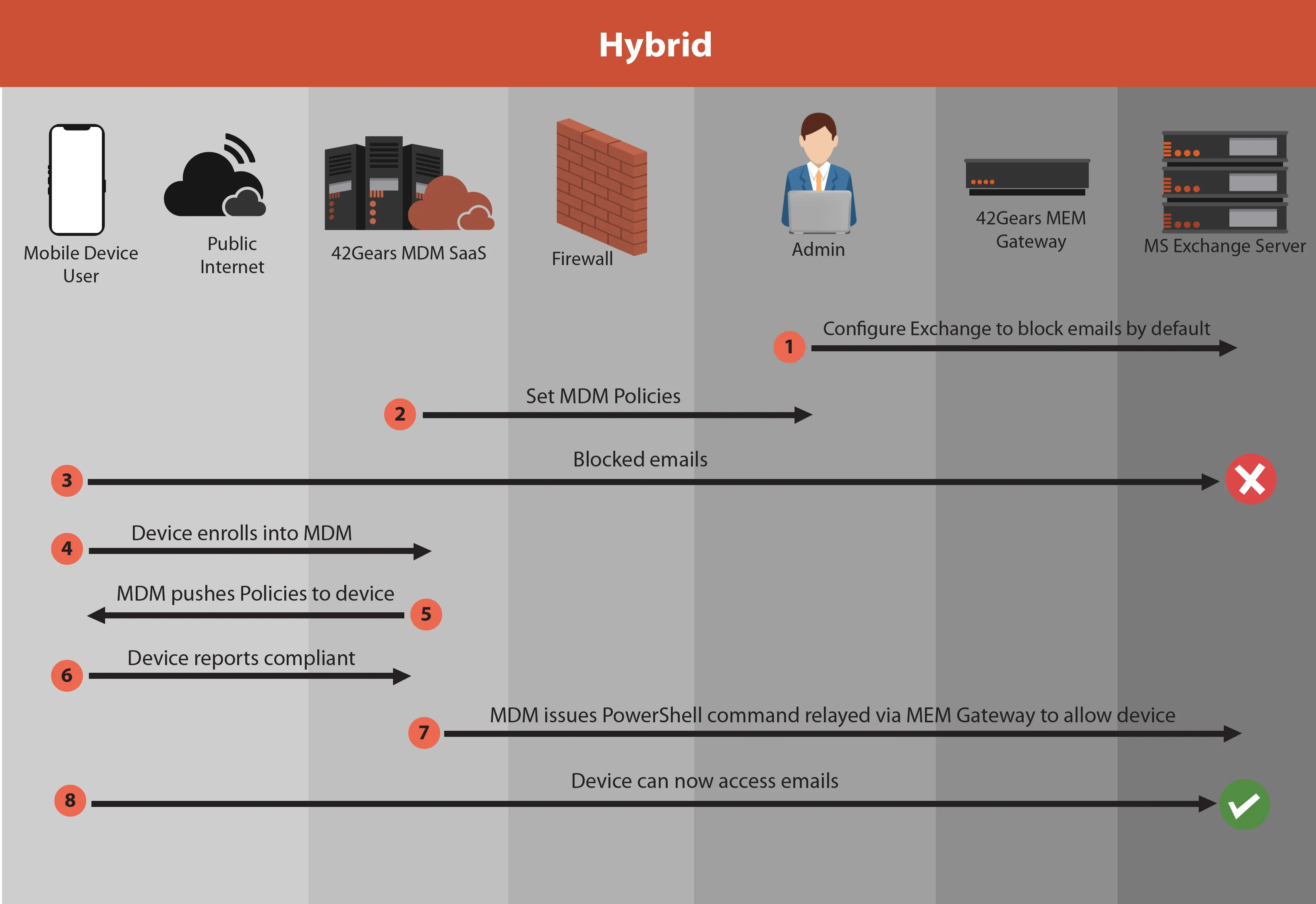

C. Hybrid (42Gears UEM on cloud and on-premise MS exchange server)

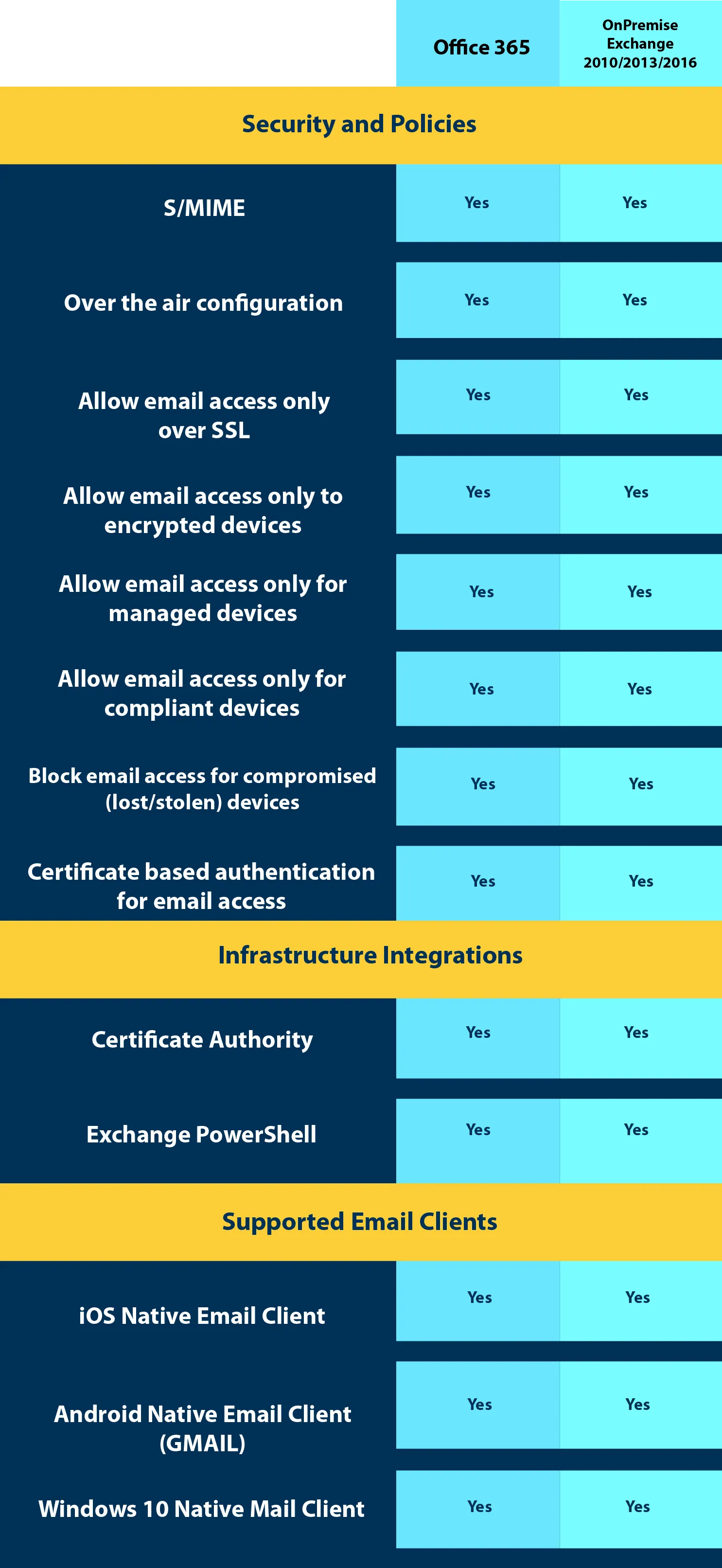

Features Matrix
Mobile Email Management Configuration
Configuring MEM Deployment

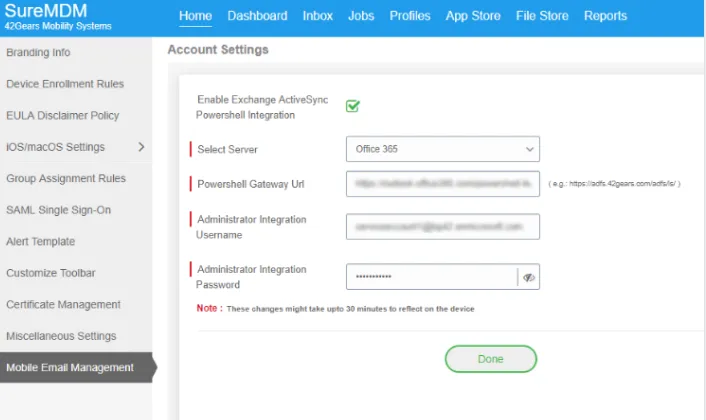

Microsoft 365
MEM configuration for Microsoft 365 does not require any MEM connector. Below are the steps to configure MEM for Microsoft 365-based accounts:
1. Go to 42Gears UEM Console.
2. Navigate to Account Settings.
3. Click Mobile Email Management.
4. Check Enable Exchange Activesync.
5. Select Microsoft 365.
6. Enter the Powershell Gateway URL, Powershell Admin Username and Password.
7. Click Done to save the changes.
On-Premise or Hybrid
MEM setup based on On-Premise Exchange server requires installation and configuration of 42Gears UEM connector. This connector needs to be installed on premise such that it has direct connectivity with On-premise Exchange server. Below is the configuration for such a setup.

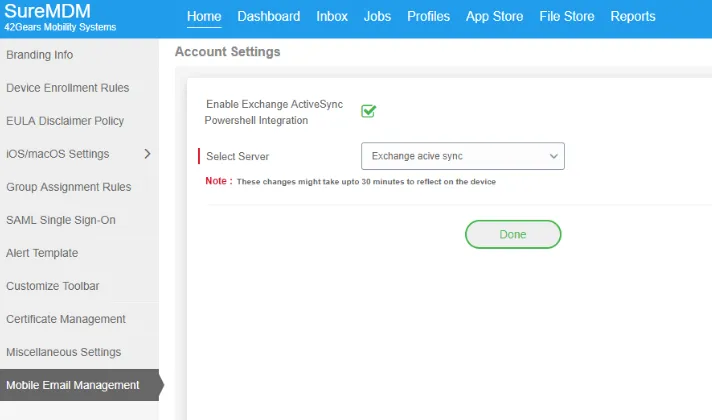

UEM console setup:
1. Login to 42Gears UEM Console.
2. Navigate to Account Settings.
3. Click Mobile Email Management.
4. Check Enable Exchange Activesync.
5. Select Exchange Activesync.
6. Enter the Powershell Gateway URL.
7. Click Done to save the changes.
UEM Connector setup:
Install and launch UEM connector on On-Premise network and enter the following details and click Submit to save the details:
- MDM URL - Server path of SureMDM Console - Example - wasteconnections.suremdm.io (Note: URL should be entered without https.)
- Customer ID - Unique ID of SureMDM Console - Example - 121800891
- Powershell URL - Example: https://<FQDN>/Powershell
- Powershell Username - Username of Exchange ActiveSync’s service account
- Powershell Password- Password of Exchange ActiveSync’s service account
Note: It might take 5-10 minutes for the device to get whitelisted and configure email account on the device.
Below given a screenshot for more clarity:
Mobile Email Management Device Profiles
A. Configure Exchange Email Profiles on Android
Configuring exchange email profiles is important before they get deployed on Android devices. This is how it can be configured:
1. Login to 42Gears UEM Console and go to Profiles.
2. Select Android and click Add to create new profiles or edit an existing profile.
3. Next, select Mail Configuration and click Using Gmail App.
4. On the Mail Configuration screen, enter the following details:
Email Address- $emailaddress$
The above-mentioned wildcard is used to dynamically replace the actual user email address at the time of pushing the profile.
Hostname or Host- Server Host name
Example- outlook.office365.com
Username- $emailaddress$
The above-mentioned wildcard is used to dynamically replace the actual user email address at the time of pushing the profile.
5. Enter Profile Name and click Save.
MEM configuration profile is now ready and can be deployed to any device.
6. Go to Home, select the device and apply MEM Configuration profile created above.
7. Once the device picks up this configuration, Gmail appears inside work container on device. This inbox is pre-configured with EAS account from MEM profile.
8. When the containerized Gmail application is launched, it asks for the account password. Once the password is entered, Exchange Mails start to sync.
B.Configure Exchange Email profiles on iOS devices
Deployment of MEM profiles on iOS devices requires configuring exchange email profiles on devices first and then pushing it to devices. This is how it can be configured:
1. Login to 42Gears UEM Console and Go to Profiles.
2. Select iOS > Add to create new profile or edit an existing profile.
3. Select Exchange ActiveSync and click Configure.
4. Enter below details in the profile.
- Account Name - Exchange ActiveSync (you can enter any name)
- Exchange ActiveSync Host - Server Host name. Example: outlook.office365.com
- User - %emailaddress%. The above-mentioned wildcard is used to dynamically replace the actual user email address at the time of pushing the profile.
- Email Address - %emailaddress%. The above-mentioned wildcard is used to dynamically replace the actual user email address at the time of pushing the profile.
5. Enter Profile Name and click Save.
MEM configuration profile is now ready and can be deployed on any device.
6. Go to Home, select the device and apply MEM Configuration profile created above.

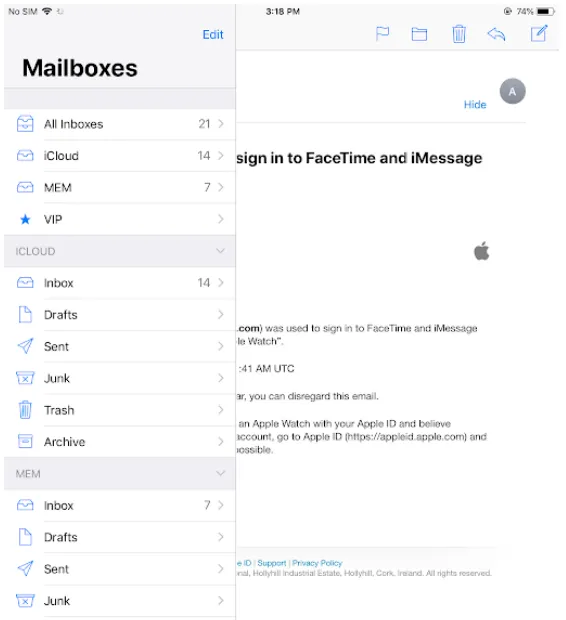

7. Once the device picks up this configuration, the iOS Mail client gets configured with EAS account from the MEM profile.
8. On launching containerized iOS Mail application, it asks for password for the mail account. Once password is entered, Exchange Mails start to sync.
C. Configure Exchange Email profiles on Windows
Exchange Activesync
When an email account is configured in Exchange Active Sync, device users can sync their Mails, Contacts, Calendars, Reminders and Notes remotely on enrolled devices.
To configure Exchange ActiveSync remotely on an enrolled device, follow these steps:
1. Login to the 42Gears UEM Console.
2. On the SureMDM Web Console, click Profiles.
3. On the Profiles screen, click Windows > Add.
4. On the Windows Profile screen, select Exchange ActiveSync > Configure.
5. Enter Profile Name.
6. Click Add and enter the following details:
- Account Name- Exchange ActiveSync (you can enter any name) Exchange ActiveSync Host- Server Host name. Example: outlook.office365.com
- Username- $username$.The above-mentioned wildcard is used to dynamically replace the actual user email address at the time of pushing the profile.
- Email Address- $emailaddress$. The above-mentioned wildcard is used to dynamically replace actual user email address at the time of pushing the profile.
- Password
- Sync Schedule
- Days to Sync
7. Click Add > Save.
The newly created profile gets listed in the Profiles section.
8. Go back to the Home tab and select the device(s) or group.
9. Click Apply to launch the Apply Job To Device prompt.
10. On the Apply Job To Device prompt, select the created profile and click Apply to complete.
Email Data Loss Prevention
42Gears Data Loss Prevention(DLP)
42Gears MEM prevents data loss through emails. It supports platforms like Android, iOS and Windows.
Android devices
42Gears MEM offers following DLP features for Android devices:
1. Prevent moving corporate emails to personal email - Corporate emails can comprise sensitive data or info that should not be shared with those outside the organization. In case an employee shares such data through their personal mail to someone outside the organization, it can put the data in wrong hands, without any trace. 42Gears MEM will prevent employees from forwarding corporate emails from their personal email ids.
2. Prevent opening corporate email attachments from personal apps- Opening corporate email attachments from personal apps can jeopardise corporate data. Most consumer apps present on personal devices offer options like sharing data over social networks. MEM deployment ensures, attachments in corporate emails cannot be opened from unauthorized personal mails. They can only be opened from authorized containerized viewer apps.
3. Disable screen capture- Capturing screen of emails with sensitive information and pasting it in a personal app can put company data at risk. Screen-capture for MEM client and other work apps can be disabled via MEM. This is available under
- Profiles -> Android -> System Settings -> Disable screen capture
4. Disable cross profile copy-paste - Copying and pasting any document from work apps (including work email client) should be disabled on personal apps as it may lead to data loss. This is available under
- Profiles -> Android -> System Settings -> Disable Cross Profile Copy Paste
iOS devices
42Gears MEM offers following DLP features for iOS devices:
1. Screenshot and screen recording - Screenshots and screen recording feature may put corporate data at risk, so MEM offers the capability to turn it off/disable it on iOS devices. This is available under
- Profiles -> iOS -> Restrictions Profile -> Screenshot and screen recording
2. Turn off Documents from managed sources in unmanaged destinations and Documents from managed sources in managed destinations - Opening corporate email attachments from personal apps can jeopardise corporate data. Most consumer apps present on personal devices offer options like sharing data over social networks. MEM deployment ensures, attachments in corporate emails cannot be opened from unauthorized personal apps. They can only be opened from authorized containerized apps. This is available under:
- Profiles -> iOS -> Restrictions Profile -> Documents from managed sources in unmanaged destinations
- Profiles -> iOS -> Restrictions Profile -> Documents from managed sources in managed destinations
3. Turn on Treat Airdrop as unmanaged destination - Through the Airdrop feature, employees can share corporate email contents and resources with other unmanaged or non-corporate devices which may lead to data loss. By default, this feature is enabled on SureMDM. In order to make data secure, we need to define Airdrop as an unmanaged destination. This is available under
- Profiles -> iOS -> Restrictions Profile -> Treat Airdrop as unmanaged destination
Windows devices
42Gears MEM offers following DLP features for Windows devices:
1. Prevent screen-capture - This is available under:
- Profile -> Windows -> Restriction Policy -> Allow screen capture
2. Prevent copy-paste
This is available under:
- Profile -> Windows -> Restriction Policy -> Allow copy and paste
Conclusion
Mobile Email Management(MEM) will no longer be a matter of choice for organisations, but will become mandatory to secure sensitive data. 42Gears MEM solution offers seamless support for all platforms including Android, iOS and Windows. The solution help companies secure their sensitive data while in-transit or at rest. Also, 42Gears MEM ensures smooth communication between stakeholders without compromising sensitive data.
To explore more on 42Gears UEM solution, click here.
